TechLiner Identification and Disassembly
TechLiner Identification
TechLiner pens are offered in 3 different sizes. When measuring from tip (with the cap on) to the tail you will find:
The Regular length TechLiner is about 5.75" in length The Shorty length TechLiner is about 5.00" in length. The Super Shorty length TechLiner is about 4.00" in length
*Measurements may vary slightly depending on the inclusion of a clip.
Assembly / Disassembly Tips (Important)
Q: How do I protect the body from the clip when unscrewing or screwing in the tail.
A: Unless needed, most disassembly does not require the tail to be removed. If you have a clip installed and must remove the tail, protect the body by placing a piece of paper between the body and the clip.
Q: If I only replace the refill, are there any tricks that may help the process?
A: Yes! Place the cap on the tail to hold the tail magnet and any metal tail spacers (if applicable) in place.
Refill Info
Refill Identification
The Ti2 TechLiner Regular and Shorty lengths are designed to host multiple refills, while the TechLiner Super Shorty is designed for a single refill. Here's a timeline of when specific refills for Regular and Shorty length pen started shipping:
April 2020: TechLiner Shorty length pens are offered with a choice of the UniBall™ Jetstream SXR-7 refill or Pilot's G2 BLS-G2-7 refill.January 2016: TechLiner Regular and Shorty length pens ship with the UniBall™ Jetstream SXR-7 refill.Prior to January 2016: TechLiner Regular and Shorty length pens were shipped with UniBall™ Signo refills (either .5mm or .7mm).
***PLEASE NOTE*** Each refill takes a specific refill kit. The refill kits are not interchangeable with different refills. Regular and Shorty length refill kits are offered in multiple refill options (when available). Super Shorty refill kits are offered with The Pilot G2 Mini refill.
Be sure to read our disassembly tip to protect the body from the clip during disassembly / assembly
Pilot G2

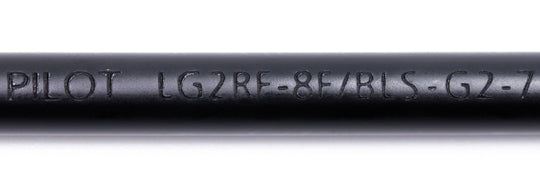

Pilot G2 refills have the part # BLS-G2-7 stamped on it. The last number "7" in the part # refers to the tip size. In this instance "7" = .7mm. All Pilot G2 (and G2 Pro) refills work with the Pilot G2 Regular length refill kit or the Pilot G2 Shorty length refill kit.
Pilot's G2 refill is popular and common to source locally. The Pilot refill has a very nice glide and leaves rich dark lines.
Pilot's G2 refill is compatible with our Regular and Shorty length TechLiner pens and requires a G2 refill kit for fitment.
Uni-Ball Jetstream

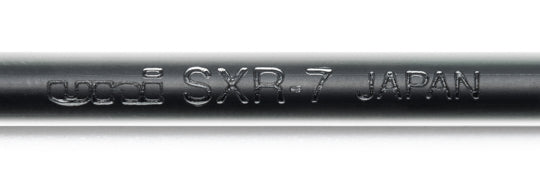

UniBall™ Jetstream Refills have the part# SXR-7 stamped on it. The last number "7" in the part# refers to the tip size. In this instance "7" = .7mm. All sizes (SXR-3, SXR-5, SXR-7, SXR-10) work with the JetstreamRegular length refill kit or the Jetstream Shorty length refill kit.
Uni-Ball's Jetstream refill leaves a consistent dark line, rolls smooth and dries very quickly. With its "hybrid" ink and twin ball system, the Jetstream offers a great balance between a ballpoint and gel ink refill.
Uni-Ball's Jetstream refill is compatible with our Regular and Shorty length TechLiner pens and requires a Jetstream refill kit for fitment.
Signo

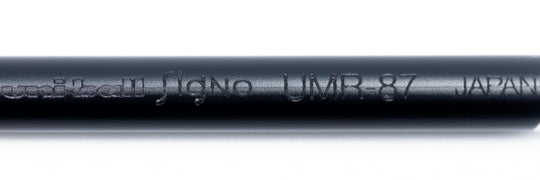

UniBall™ Signo Refills have the part# UMR-85N stamped on it. The last number "5" in the part# refers to the tip size. In this instance "5" = .5mm. All sizes (UMR-81N, UMR-83N, UMR-85N, UMR-87N) work with the SignoRegular length refill kit or the Signo Shorty length refill kit.
Pilot G2 Mini

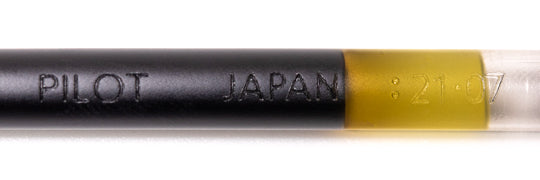

The Pilot G2 Mini refill (also known as the Pilot G2 Pixie or Pilot G2 XS depending on your location) is offered in the TechLiner Super Shorty length. Due to the compact size, this is the only refill currently compatible with our Super Shorty length pens.
Lefty Recommendations
Uni-Ball's Jetstream ink dries very quickly. If Pilot's G2 is preferred, smaller tip sizes leave less ink on paper and dry faster as a result.

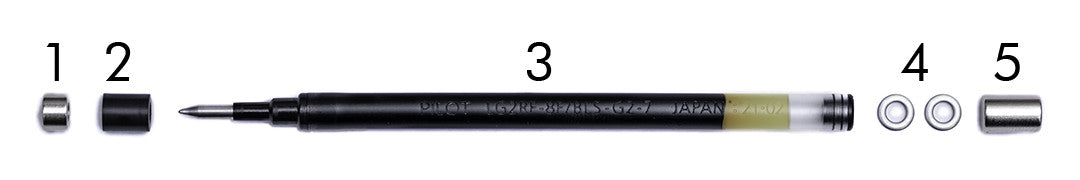

TechLiner Pilot G2 Assembly
Parts List
1. G2 ring magnet*
2. Front spacer
3. Pilot's G2 refill
4. Tail washer
5. Regular length tail spacer
6. Tail magnet*
*Magnets are directional. Inserting them reversed will cause the magnetic cap to repel.

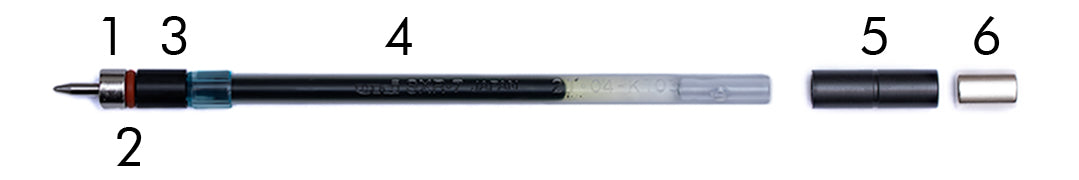

TechLiner JetStream Refill Assembly
Parts List
1. Jetstream ring magnet*
2. O-ring
3. Front ring spacer
4. Jetstream refill
5. Regular tail spacer
6. Tail magnet*
*Magnets are directional. Inserting them reversed will cause the magnetic cap to repel.

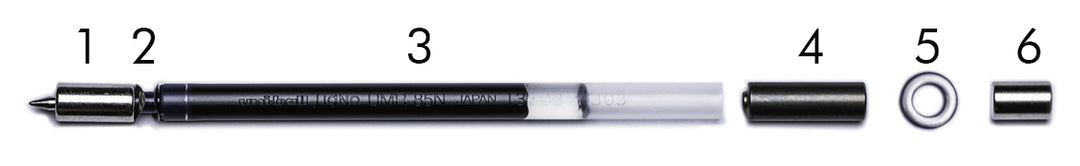

TechLiner Signo Refill Assembly (regular length 5.75")
Parts List
1. Signo ring magnet*
2. Signo wave washer x2
3. Signo refill
4. Signo Regular length tail spacer
5. Tail washer
6. Tail magnet*
*Magnets are directional. Inserting them reversed will cause the magnetic cap to repel.

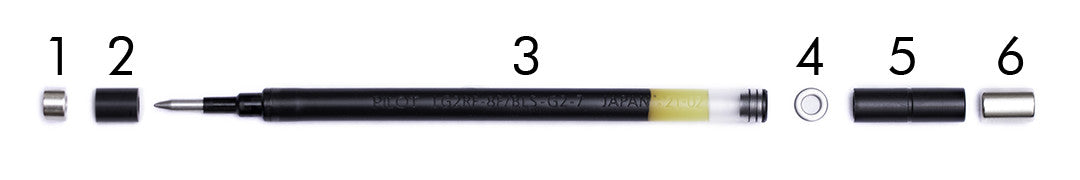

TechLiner Pilot G2 Assembly
Parts List
1. G2 ring magnet*
2. Front spacer
3. Pilot's G2 refill
4. G2 tail washers #1 and #2
6. Tail magnet*
*Magnets are directional. Inserting reversed will cause the magnetic cap to repel.

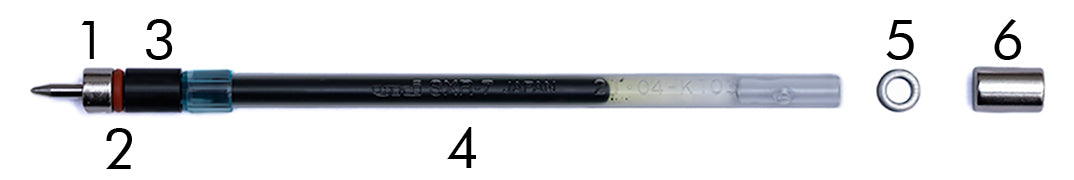

TechLiner JetStream Refill Assembly
Parts List
1. Jetstream ring magnet*
2. O-ring
3. Front ring spacer
4. Jetstream refill
5. Jetstream shorty tail washer (**only used with a clip installed**)
6. Tail magnet*
*Magnets are directional. Inserting reversed will cause the magnetic cap to repel.

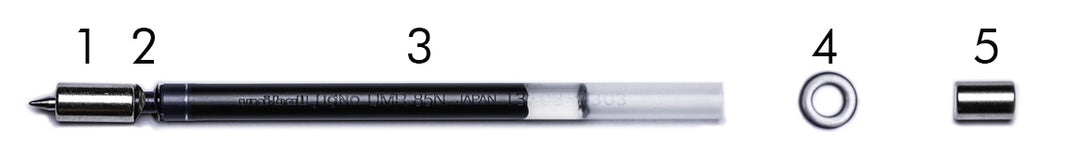

TechLiner Signo Refill Assembly
Parts List
1. Signo ring magnet*
2. Signo wave washer x2
3. Signo refill
4. Signo Shorty tail washer (**only used with a clip installed**)
5. Tail magnet*
*Magnets are directional. Inserting reversed will cause the magnetic cap to repel.
TechLiner Jetstream to Pilot G2 locally sourced conversion
What if I run out of ink and I need a quick fix for my Regular or Shorty length TechLiner (and I don't have a Pilot G2 conversion kit)?

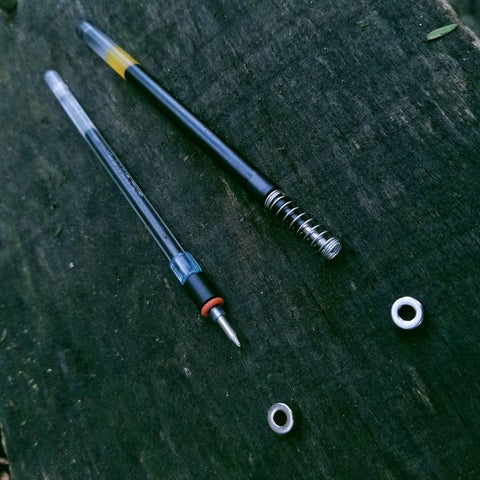

All that's needed is a Pilot G2 (or G2 Pro) retractable pen from any local supply store. "Retractable pen" is important because the spring along with the refill will be used from the G2 pen (refills alone don't include the spring).
Replace the front spacer and front o-ring (if included) with the spring from the retractable pen.

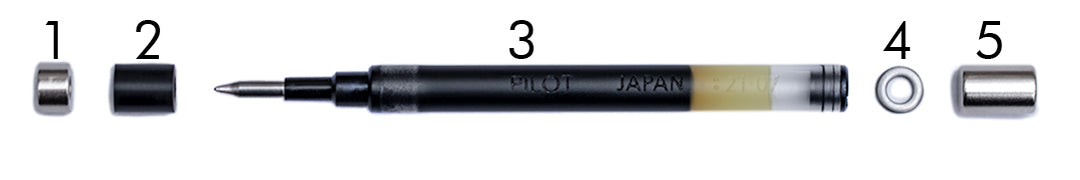

TechLiner Pilot G2 Mini Assembly
Parts List
1. G2 Mini ring magnet*
2. G2 Mini spacer
3. Pilot's G2 Mini refill
4. Tail washer
6. Tail magnet*
*Magnets are directional. Inserting reversed will cause the magnetic cap to repel.
What if I run out of ink and I need a quick fix for my Super Shorty length TechLiner?

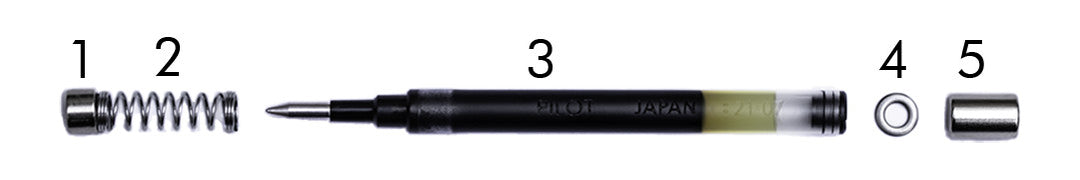

The Super Shorty was designed to utlize the Pilot G2 Mini (Pilot's Pixie line). All that's needed is a Pilot G2 Mini (also known as the Pilot Pixie) retractable pen from any local supply store. Please note: the G2 Mini is more challenging to find locally than the common G2 (non-mini)
"Retractable pen" is important because the spring (#2) along with the refill will be used from the G2 Mini pen (refills alone don't include the spring).
Replace the front spacer and front o-ring (if included) with the spring (#2) from the retractable pen.
Cap Internals Installation
The order of the internals are as follows:
- C-clip on top
- Magnet in center

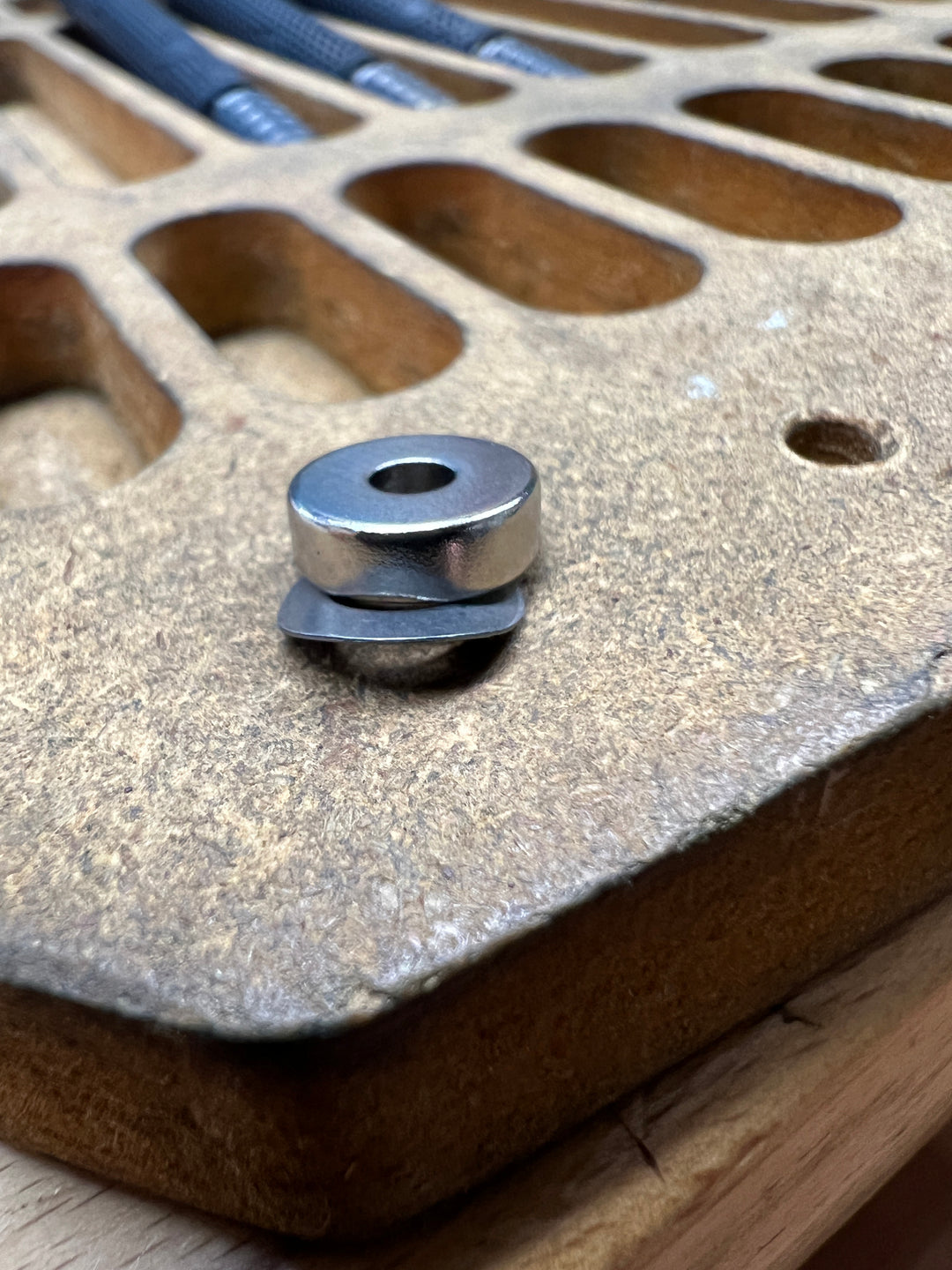

- Wave washer on bottom
The wave washer should be "cup down"

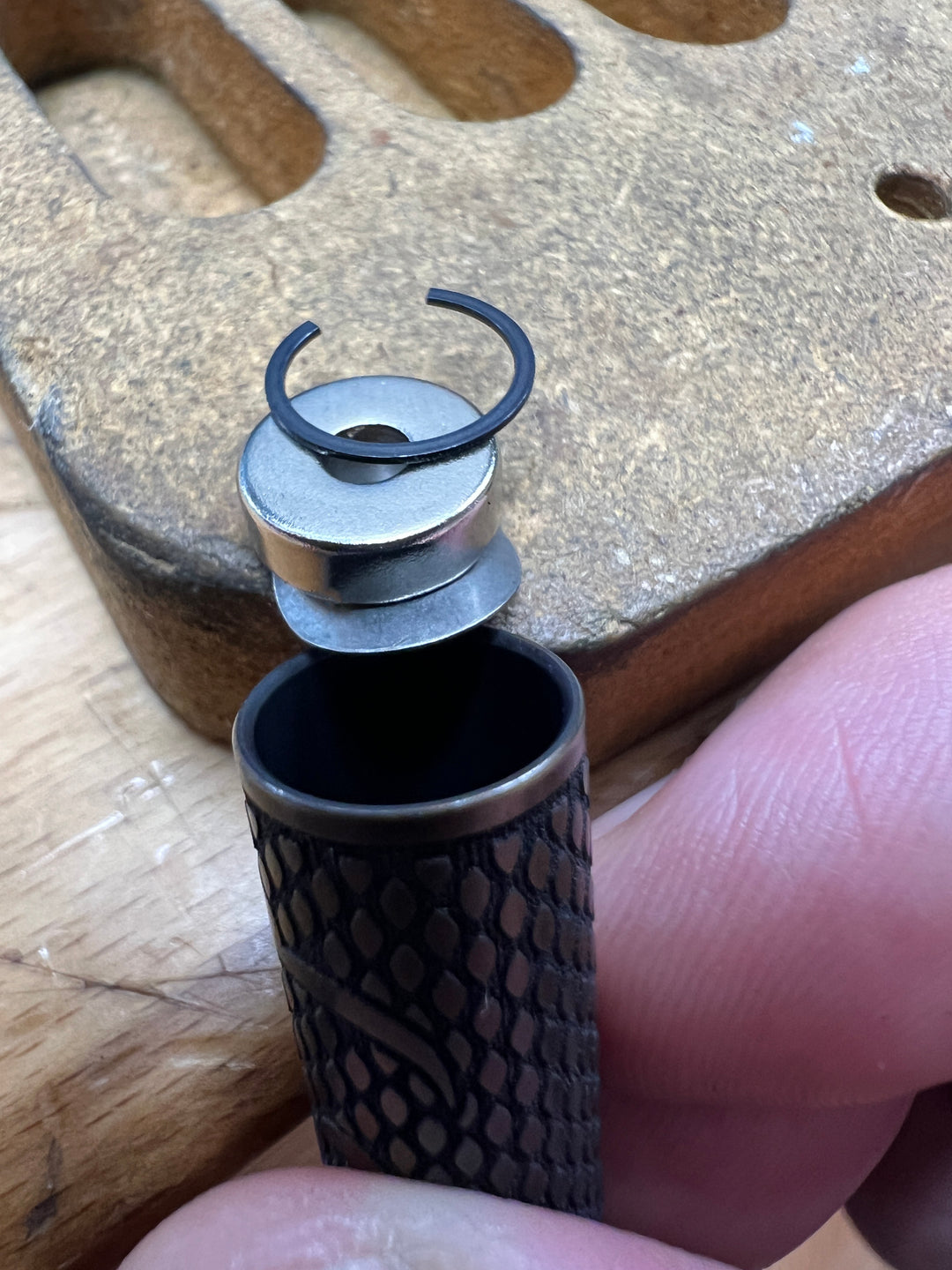

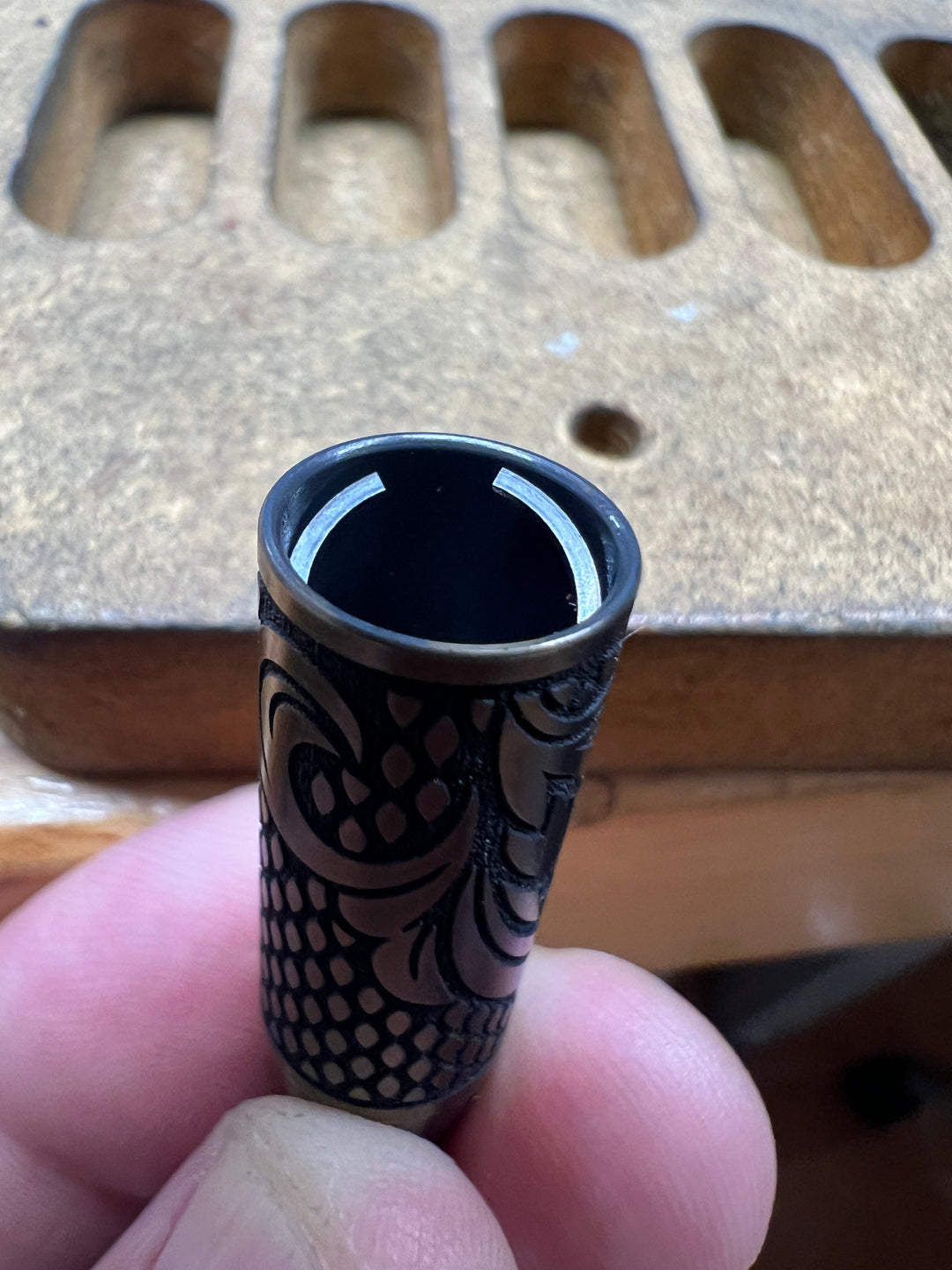

The C-clip gets pushed into the cap

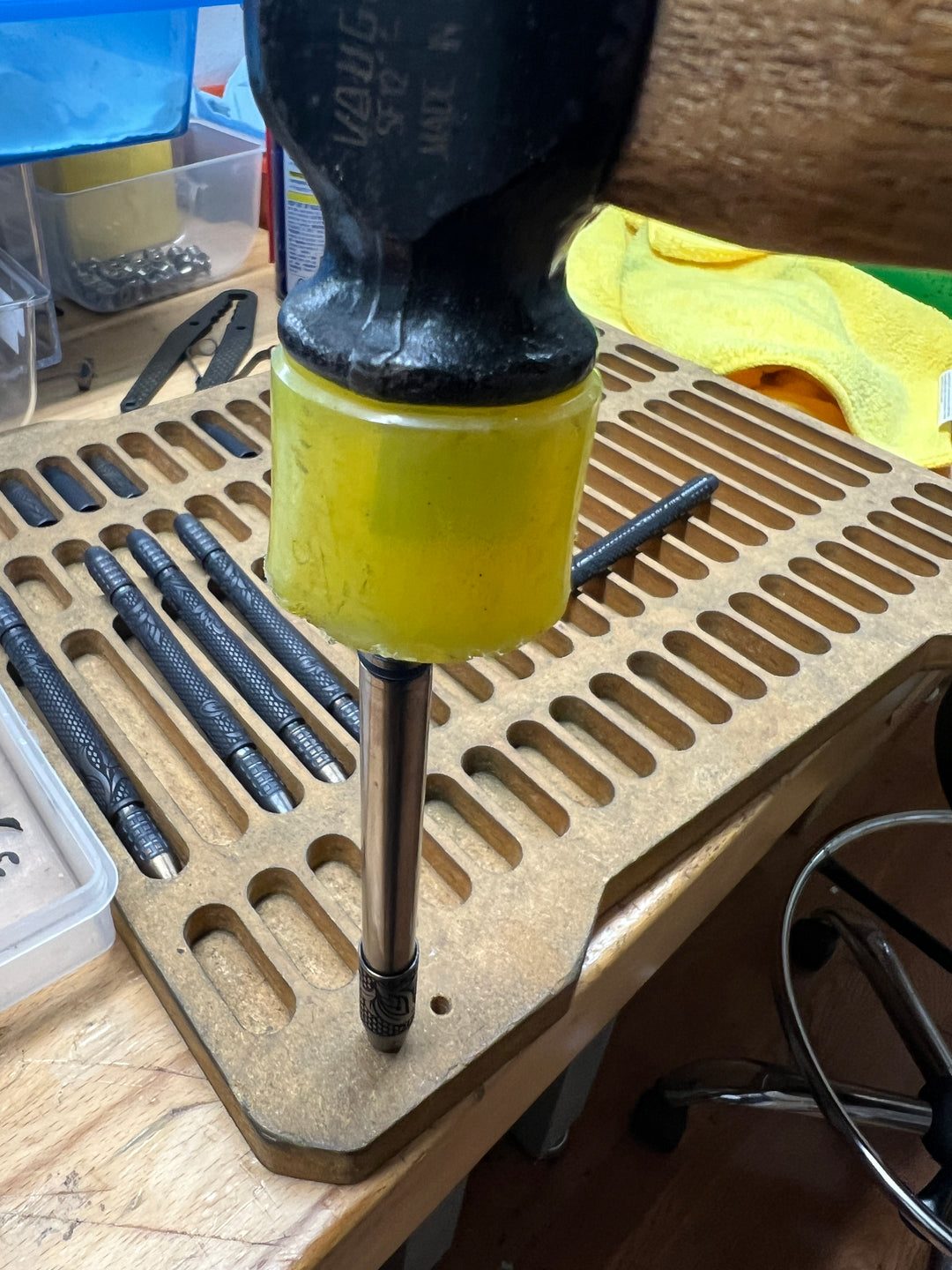

You'll need a tool about the diameter of the body (.375"). We don't recommend using the body of your pen- it may get scratched and/or deformed on the edge. It needs to fit in the cap and be larger than the ID of the c-clip.
Ensure the wave washer and magnet are towards the bottom and sitting flat (to prevent binding). You may need to push the wave washer and magnet into place and then gently tap the c-clip towards the base of the cap.
It's in place when the c-clip snaps into a groove. You likely won't hear the snap- inspect by sight for fitment verification.
Tip and tail magnets may need to be reversed based on the installation of the cap magnet.
Stray Magnet Stuck In Cap?
There's a couple options to remove a magnet from the cap. Immediate options will require another magnet - utilize the tail magnet if available.
- (Popular method) Utilize saran wrap and another magnet for removal (video here)
- Tape and chopsticks can be your friend. Wrap a piece of tape around the perimeter of the magnet, insert the chopstick and pull up on the tape. Use the chopstick to keep tape pressure on the magnet.
- Send the pen to us. We'll inspect the pen, remove stuck magnets and send the pen back with a quick turnaround time.
Ship all product for inspection, spa service and repair to:
Ti2 Design
96-1333 Waihona St Unit C
Pearl City, HI 96797
Additional questions?
Contact us at: info@ti2design.com
Please include pictures / video to assist (if possible)
